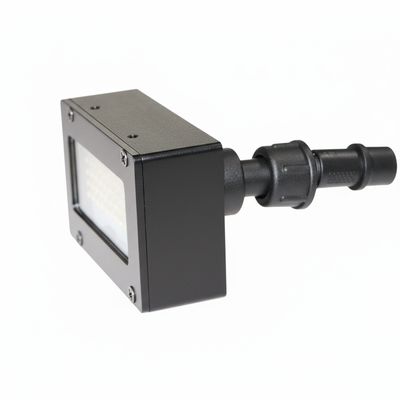

High Power UV LED Light 600W 395nm Wavelength For UV Ink Drying System

प्रमाणन
चीन Shenzhen Super- curing Opto-Electronic CO., Ltd प्रमाणपत्र
चीन Shenzhen Super- curing Opto-Electronic CO., Ltd प्रमाणपत्र
ग्राहक समीक्षा
हमारे पास लंबे समय से सहयोग है, यह एक अच्छा अनुभव है।

—— माइक

ईमानदारी से हम अगली बार जल्द ही सहयोग कर सकते हैं।

—— बॉक

मुझे आपकी एलईडी टॉर्च बहुत पसंद है, यह हाथ से पकड़ी जाती है और संचालन बहुत आसान है।

—— क्रिस्टोफ़

मैं अब ऑनलाइन चैट कर रहा हूँ

High Power UV LED Light 600W 395nm Wavelength For UV Ink Drying System

High Power UV LED Light  600W 395nm Wavelength For UV Ink Drying System
High Power UV LED Light  600W 395nm Wavelength For UV Ink Drying System

बड़ी छवि :  High Power UV LED Light 600W 395nm Wavelength For UV Ink Drying System

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: CG
प्रमाणन: CE*RoHS
मॉडल संख्या: सीजी-सीटी 3-16027-600 ए
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: 2500-3000usd 1 set
पैकेजिंग विवरण: लकड़ी का केस
प्रसव के समय: 10-15 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी
आपूर्ति की क्षमता: 10 सेट/दिन

High Power UV LED Light 600W 395nm Wavelength For UV Ink Drying System

वर्णन
कीवर्ड: यूवी एलईडी इलाज उपकरण शक्ति: 600W
इनपुट वोल्टेज: AC85-265V तरंग लंबाई: 395nm 385nm
कूलिंग वे: पानी की मदद से ठंडा करने वाले उपकरण यूवी तीव्रता: 18W/सीएम2
गारंटी: 2 साल पैकेट: लकड़ी का केस
प्रमुखता देना:

600W UV LED light

,

395nm UV ink drying system

,

high power UV curing equipment

High Power UV LED Light 600W 395nm Wavelength For UV Ink Drying System


UV LED Curing Equipment Description


The use of LED UV curing technology represents a significant innovation in material processing. By generating ultraviolet radiation from LED lights, it offers a remarkably fast and high-performance method for drying UV-sensitive materials like coatings, adhesives, resins, inks, and varnishes. It is now a widely implemented modern technique.



UV LED Curing Equipment Datasheet


 Model



CG-CT3-26027-600A lamp color

Rose golden/Black


 Power


600W

Chip brand

LG/Seoul


Input voltage


 AC85-265V

Wave length

365/385/395/405nm


Application


UV ink/vanish/coating /adhesive curing

Life span

20000H


Cooling way


Water cooling

Emitting window size

customized


UV intensity


18W/CM2 Dimmable 0%-100%


Best emitting distance


30-50mm  Package wooden case


UV LED Curing Equipment Advantages

  1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
  2. Environment friendly , No mercury. No ozone making and VOC discharge.
  3. NO warm-up , turn on/off instantly.
  4. Low temperature, can be used for PE and film ink cuing .
  5. Long lifespan, 20000hours .


High Power UV LED Light  600W 395nm Wavelength For UV Ink Drying System 0



High Power UV LED Light  600W 395nm Wavelength For UV Ink Drying System 1





UV LED Curing Equipment FAQ:


Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.


Q2: What’s your led brand ?

A2:LG/Seoul


Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz


Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling


Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%


Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.


Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
